6 Cylinder CNC head porting

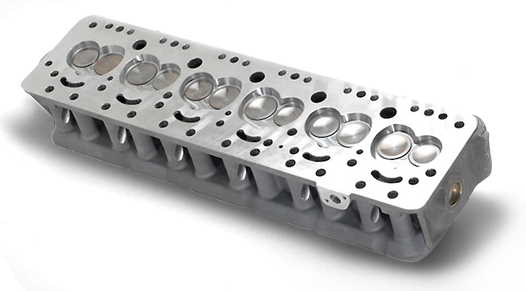

ALUMINIUM CYLINDER HEADS

After 17 years successfully producing our aluminium cylinder heads we have taken the decision to upgrade our product. By reinvesting in modern techniques to continue the development of this product to be the best on the market, thereby staying ahead of the competition in so many ways.

We have gone back to the drawing board and started with completely new CAD drawings to ensure accuracy and perfect detail in our product.

Increased investment in CAD software has allowed us to redraw the head in 3D as a solid model, producing all new technical drawings - including fully modelling and drawing the inlet and exhaust ports.

We have further enhanced this ‘design to manufacture’ investment philosophy by including state of the art CAM software. This has allowed us to plan the tool paths and write the machining program from a professionally designated drawing office, not the shop floor, linking these programs direct to the CNC machine, with a dedicated computer network.

Around 1.5 million lines of code will download just to machine the ports of a fast road 3000 head with a continuous machining time of 13 hours.

When it comes to machining the past two years have seen a huge upgrade to our capabilities with the acquisition of a brand new 5 axis CNC machining centre.

This has allowed us to fully machine the inlet and exhaust ports along their entire length, which involves around 13 hours of continuous machining – so no more hand gas flowing like the old days with its inherent inconsistencies making each head liable to variations in flow capability – this is now eliminated. What we design is what you will get every time.

Now the ports are machined with symmetry and are all identical, not only from head to head but each port along an individual head. This makes for considerably higher power gains and balanced performance, with the potential for each engine to give much more consistent power outputs than ever before.

We not only lead the Austin Healey market with this technology, we are at the very front of modern engine development offering this service to all makes and types of engine.

So whether you require a standard, fast road or full race head, there really is no better or more up to date version available on the market today.

Be sure to buy a Denis Welch Motorsport original…look for our logo!
